UTM with C-STIC Installation and Mounting Guide

This is the guide on how to install a UTM device with the C-STIC Sensor.

IMPORTANT: THE ASSET MUST BE CREATED IN TRANSCEND WEB PORTAL PRIOR TO THE INSTALLATION.

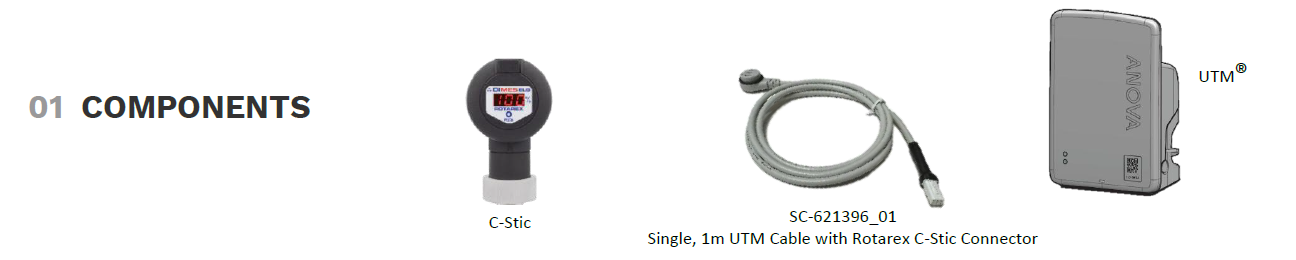

STEP 1

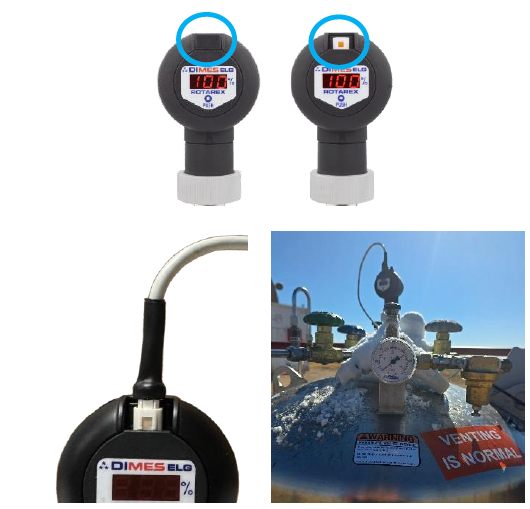

Slide out the cap at the top of the C-Stic to expose the
connection. The connection is keyed. Make sure to connect the
UTM cable to the C-Stic in the correct position.

IMPORTANT #1: If needed to disconnect the C-Stic from the UTM cable, use a screwdriver to push down on the locking pin and push up to be able to remove it.

STEP 2
WARNING: It’s critical the C-Stic sensor is already mounted in place before proceeding.
Connect the UTM® to the C-Stic sensor:

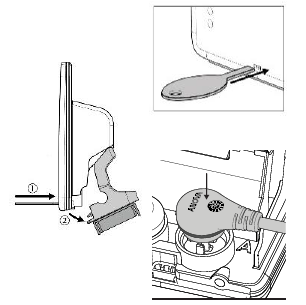

1 - Detach bracket.
2 - If using only 1 sensor, install into PORT A on the rear of the UTM.
1. 3 - Press down firmly on the ZAB plug until the O-Ring is sealed. It may require you to press down with 2 thumbs. The UTM® will begin to activate automatically.

STEP 3

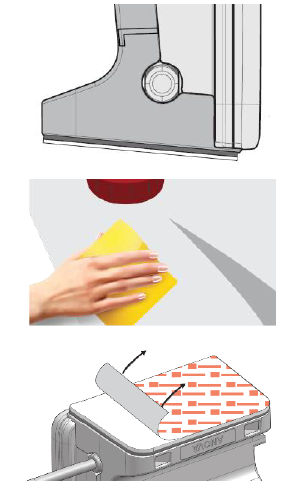

VELCRO ADHESIVE MOUNTING (OPTIONAL) The UTM® Bracket will have at the bottom a Velcro mount with an adhesive surface to secure/mount the UTM® next to the tank. The UTM® should be mounted on a surface near the tank.

It’s not recommended to mount the UTM® directly on the Tank’s surface with the Velcro adhesive.

Select the surface’s location where the UTM® will be mounted and clean that area thoroughly to ensure it is free from any greasiness/dirt and completely dry.

 Peel backing off from the Velcro adhesive and place the unit on the selected surface. Fix the UTM® in place by pressing down firmly so the adhesive properly attaches to the desired surface.

IMPORTANT #2: For the adhesives to SUCCESSFULLY ATTACH to the surface, the TANK SURFACE TEMPERATURE must be ABOVE 60°F/15°C and a CURING TIME of MINIMUM 24 HOURS is needed.

STEP 3

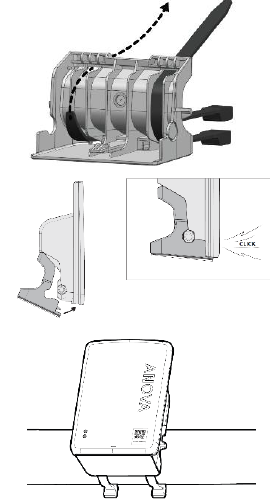

ZIP TIES MOUNTING (OPTIONAL) Insert the zip ties on the back bracket of the UTM® to be able to secure it to the tank.

Attach the bracket to the back of the UTM®.

The UTM® should be mounted vertically on the top ring of the Micro Bulk Tank.

STEP 4 (OPTIONAL)

 If manual activation is required:

1 – Activate UTM by holding the activation wand in place for 6 seconds.

2 – LEDs will begin to flash.

3 – Watch for solid green to confirm successful communication.

IMPORTANT #3: If the activation attempt failed (solid red light at the end of the attempt), wait at least 2 minutes before trying to activate the UTM device again.
